Free download BMW ICOM ISTA-D 4.43.13 ISTA-P 3.71.0.200 (09.2023 )

Free download 09.2023 BMW ICOM diagnostic softwareISTA-D ISTA 4.43.13 ISTA-P 3.71.0.200 on Mega with questions and answers frequently asked.
Download:
BMW_ISPI_ISTA-P_DAT_3.63.0.400.istap
BMW_ISPI_ISTA-P_SYS_3.63.0.400.exe
https://mega.nz/#F!5pIW1DyY!jYoL2TxwI1WyWfuudfN4nA

Note:  The software is not me, to use at your risk. I am not responsible for a bad use.
If you want use ICOM software with safety, i recommend this: http://www.cnautotool.com/goods-4828-ICOM+A2BC+for+BMW+with+Software+Plus+EVG7+Tablet+PC.html
I confirmed this works perfect in BMW diagnostic, coding and programming on Exx & Fxx cars.

Space required: A full installation of ista-p 3.63 without older installed versions needs 244gb space free.
Installation of 3.63.0 with installed version:
– 3.62.0 needs 103gb
– 3.62.1 needs 95gb
– 3.62.2 needs 114gb
– 3.62.3 needs 114gb
– 3.62.4 needs 114gb
– 3.62.5 needs 114gb
space free.
Vehicle coverage: From ISTA/P version 3.62.0 on (end of June 2017), the programming of the F, G, I series with ISTA/P will be gradually switched off.
Model series affected:
F, G, I series vehicles.
· Series F056 can no longer be dealt with as of ISTA/P 3.62.1.
· Series I001, F001, F025, S15A, S15C can no longer be dealt with as of ISTA/P 3.63.0.
FAQs:
Q: I have question about installing ISTA/P, clean and fresh install or installing over old version?
A: You have to uninstall the old version before.
Q: I have 110GB free, with istap file inside it will be free only 31GB and for installation is needed 230GB free, what now?
A: Purchase bigger HDD or download standalone.
Q: How did you install 3.63 with only 150gb? The installer would not continue…
A: First thought was to remove all data from ISTA/P but I have removed PsDZ and SQLiteDBs from Rheingold, I have tried and installer didn’t brake installation, instead of 240 GB it was only 137 GB needed.
Q: ISTA-P standalone? Sure? Where can i find this?
A: Here you go. 63.0 PSdZData – Lite and Full Versions:
Q: The folder pzd-data alone is not ista-p. how should it work? how to install the other files from ista-p?
A: You can better use Ista+ incl SDP because some Fxx are not supported in new Ista-p. Update Ista-p for Exx is not useful.
Q: I extracted all files then install bmw ispi ista p sys.. but nothing happen
A: You Need Loader.  Download ISTA-P Loader V6.3 Lite + activation key:
https://mega.nz/#!1tEQxIRJ!nJbc74da1LtbJQK1VAO4d02HMmtYu76Js5ZKLCp5PLI
UNBLOCK archive and extract with 7-zip
Password: beemerboy88
Or
use the easy way, install standalone version of ISTA+ and ISTA/P from here
Standalone versions of ISTA-D 3.63.0.400 and ISTA-P 4.08.12:

For ISTA-P Loader thanks to beemerboy88.
SQLiteDBs 4.08.12, including RU, EN, DE, OTHER.
For unpack archives use 7-zip 16.04 or higher.
All installed and ready to work.
ISTA-P work with old and new Loader from beemerboy88.
Instructions for installation, configuration and solution of possible errors, is located in the Tools folder (FAQ-RU.pdf and FAQ-EN.pdf).
To view pdf files, use Adobe Acrobat Reader DC.
Don’t ask password from pdf files!!!!
Read carefully FAQ in Tools folder!!!
ISTA-P – 147 GB
Service Data (SDP) – 104 GB
Logistic Data (BLP) – 2.63 Gb
FASTA & HW check disabled !!!

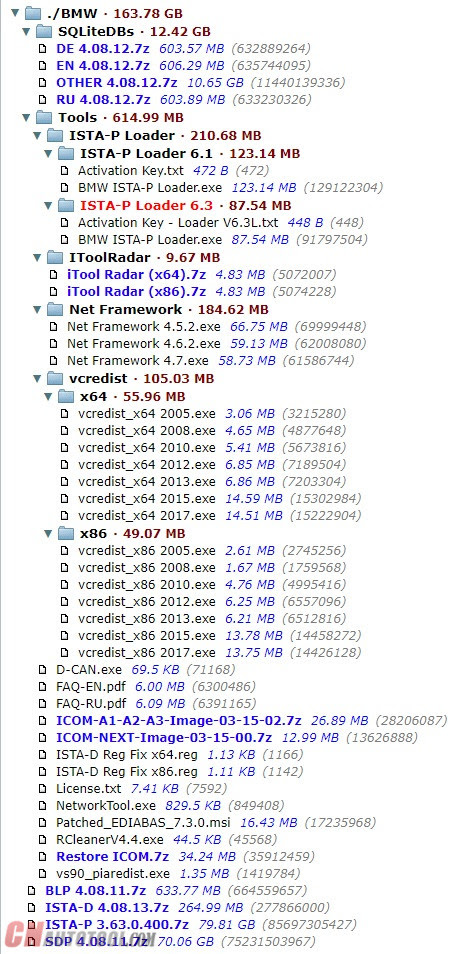

What’s included in torrent:

“standalone” ISTA-Ps were on torrents for some old versions. They are basically copies of folders taken from the installed version. Then you just paste them to your computer at standard locations and use beemerboy88’s launcher.
You can still make your own “standalone” ISTA-P by installing it to a computer which has more disk space and then copy to the computer with insufficient disk space. Just be sure to uninstall old version first, else it will be a mess and you will never be able to uninstall them.
You also need to take into account that ISTA-P ON https:/www.cnautotool.com creates multiple temporary folders/files for each session and they may take some considerable amount of disk space. I would not risk using ISTA-P on a computer which has less than 10-20Gb of space left after pasting such “standalone” version.

BMW ICOM A2+B+C WIFI Setting Guide

Here is a tutorial on how to set WIFI for BMW ICOM A2+B+C diagnostic & programming tool, hope it helps.
STEP1:make sure you ICOM A2 have a WIFI card
go to 169.254.92.38/60080
user:root
pass: NZY11502
make a self-test, than you can got the test result , the WIFI function must be OK

STEP2:Go to 169.254.92.38/58000 make the WIFI setting, ( the bmwicomshop.com bmw ICOM a2 WIFI version no need setting)
a . Set the mode to ISPI-NEXT

b . SET WLAN , SSID name ISPI-NEXT PASS:12345678 save

After the setting on ICOM is done , let’s make computer setting, suggest buy the a USB WIFI card , then set it to AP mode
Then set same SSID name as ICOM Next; ISPI-NEXT
And choose WSP2 method , enter same password :12345678


Then OK, unplug ICOM LAN cable, restart ICOM waiting it connect to laptop WIFI!

Then start ISTA/D make diagnostic. Enjoy!

BMW ICOM A2 emulator system red indicator flash

Before go deep into the topic today, let’s check the BMW ICOM ICOM A and ICOM B module indicator and meanings.

It is not different to see that if the Red LED indicator of either ICOM A or ICOM B emulator flashes, the Rheingold ISTA-D ISTA-P software will report error and fail to communicate with vehicle.
Problem& Symptom:
BMW ICOM A2+B+C diagnostic system A2 module red indicator blinking when connected to vehicle with LAN cable.
Solution:
2 solutions provided by experienced BMW ICOM diagnostic system experts:
DISCLAIMER: We are not responsible for the damage.
1)
1-rehot hot air gun this IC
2- Replace or change new one if necessary
3-The problem is the IC

2)
Fix the ICOM A2 from CnAutotool.com emulator firmware follow the PCB board displayed below:
The pulse generator to buy on auctions

white wire=the line to the WiFi antenna.
Others all marked in the PCB board

HOW TO DO PROGRAMMING WITH ISTA+

Until now, different systems for BMW diagnostic tool vehicle diagnosis (ISTA) and programming (ISTA/P) have been used. This means it was necessary to change systems several times when repairing a vehicle using software.
ISTA+ has been expanded so that all the required programming functions for the series F, G and I are integrated.
E-series vehicles still have to be programmed using ISTA/P!
The functions relevant for programming can be accessed via the following menus:

Vehicle treatment
● Software update
● Comfort – as per the suggested measures plan
● Advanced – with broadened scope
● Additional software (range of functions is not active yet)
● Control unit replacement
● Before exchange (preparation) – control unit read-out for the exchange
● After exchange (subsequent evaluation) – control unit configuration after exchange
● Vehicle modification
● Retrofit
● Conversion o Conversion (only coding)
● Back fitting
● Immediate measures

HOW TO DO DIAGNOSTICS USING ISTA+

How to start the ISTA workshop system:
Double click the BMW diagnostic software ISTA+  icon in the Windows desktop created during the installation process above. After ISTA is started, the start screen appears. A list of news is displayed. You can set the display period in the Administration.

Once you have read the “Note on using ISTA”, close the dialog using the button “Next”. You can open a process from the start screen: Select the “Operations” menu.
SELECTING A VEHICLE WITHOUT CABLE CONNECTED TO CAR
Method 1:
You can enter your short VIN (Last 7 of the VIN) and be able to pull relevant procedures or troubleshooting instructions without actually connecting to the car. To access this feature, launch ISTA+ and click on Operations tab (1). Then enter the short VIN into the VIN box (2). Then click on Accept (3). The Accept button will become active only when a VIN number is entered. You can explore features specific to your car from here.

Method 2:
Follow the steps as in the picture below:

SELECTING A VEHICLE VIA “READ OUT VEHICLE DATA” WITH CABLE CONNECTED TO CAR
After you select the “Operations” menu from the start screen, the workshop system changes to the “Vehicle identification number” tab under the “New” menu item.
We will assume that you have connected the right interface to the car at this time (Refer to interfaces section). Our example will use BMW ICOM A2+B+C.
This is how to identify a vehicle by reading out the vehicle data, while automatically creating a process:
1 Click the “Operations” main menu item in the navigation area.
2 Select the “Read out vehicle data” tab and follow the instructions provided.
3 Click the “Identification without vehicle test” or “Complete identification”button

The connection to the vehicle is now established. The workshop system performs an identification of the vehicle. It also reads the vehicle identification number and further data from the vehicle. The progress of the identification operation is displayed on a progress bar.

Start vehicle test
If vehicle identification was called up via “Read out vehicle data” and “Complete identification”, the vehicle test starts automatically following vehicle identification, followed by the vehicle operation and service data transfer and analysis. The control unit tree is displayed during the vehicle test

Here you can observe the ongoing determination of the control units that are fitted. If no control unit tree is available, the “Control unit list” mask is displayed automatically.
The control unit tree contains all the control units identified in the vehicle and displays their allocation to the relevant bus system. The control units are identified in succession and their fault memories are read out. The color then changes to display of the detected state. An explanation of the colors can be found in the lower section of the displayed mask. From this screen, if required you can restart the vehicle test or also call up control unit functions so that you can read out measurements or activate actuating elements.
Before you can access a test plan you must first display the fault memory. This is how to view the fault memory:
1 Wait until the vehicle test is completed.
2 Click the “Display fault memory” button.
Show fault memory
After the vehicle test, click the “Display fault memory” button in the “Fault memory” mask. The fault codes that are read out and the associated description are listed here.

The function “Delete fault memory” can be carried out at the end of the guided troubleshooting. In order to start the guided troubleshooting, first calculate a test plan.
This is how to calculate a test plan:
Click the “Calculate test plan” button.
Processing the test plan
The test plan lists the components and functions that might have caused the fault. The documents and test modules corresponding to the components and functions are displayed in the “Type” column, identified with “ABL”. In the “Type” column, documents and test modules are identified with an abbreviation.
Procedures localize a fault and give advice on rectifying it. This is how you start a procedure:
1 Select the required procedure from the test plan.
2 Click the “Display” button.

The priority in the test plan does not necessarily specify the call-up of the processes. The priority is to be regarded as a recommendation for processing.
A test module is primarily designed to identify the cause of a fault. Furthermore, service functions can be performed via procedures. Information can be displayed within a test module, as well as measured values read out or entered. Furthermore, queries can be made available in procedures via selection screens.
After a test module has been carried out, additional information is added to the test plan if this is necessary for further troubleshooting or fault elimination.

After the test plan has been completed, you should carry out the “Delete fault memory” function.
This article is posted by www.cnautotool.com. if you have questiones, please contact us sale@cnautotool.com

HOW TO USE BMW RHEINGOLD ISTA WITH BMW ENT CABLE

1. Open used for connection network adapter properties, then “Internet Protocol Version 4 (TCP/IPv4)” properties, then enter 169.254.1.1 for “IP address” and 255.255.0.0 for “Subnetmask”.

2. If VMware is installed, open Virtual Network Editor and disconnect from the host any adapters with Subnet Address 169.254.0.0.

3. Connect car with ENET cable to PC, turn ignition on.
4. Now run BMW diagnostic tool BMW Rheingold ISTA using shortcut in start menu and wait until it boots, then press settings button.

5. Select “VCI Config” tab and “HO-ICOM/ENET local and ISIS network”, then “OK”.

6. Go “Operations”, then “Read Out Vehicle Data” and “Complete Identification”.


7. Select your ENET connection from the list and press “Set up connection”button.


8. Alternatively you could select “HO-ICOM/ENET direct connection” in “VCI Config” tab and “ENET” mode with empty “IP-Address” field during connection setup.

HOW TO USE BMW RHEINGOLD ISTA WITH BMW ICOM

HOW TO USE BMW RHEINGOLD ISTA WITH BMW ICOM
1. Open used for connection network adapter properties, then “Internet Protocol Version 4 (TCP/IPv4)” properties, then enter 169.254.1.1 for “IP address” and 255.255.0.0 for “Subnetmask”.
2. If VMware is installed, open Virtual Network Editor and disconnect from the host any adapters with Subnet Address 169.254.0.0.
3. Open C:\EDIABAS\BIN\EDIABAS.INI with Notepad and check for “Port = 6801” in TCP settings.


4. Connect car with ICOM to PC.

5. Now run BMW Rheingold ISTA using shortcut in start menu and wait until it boots, then press settings button.
6. Select “VCI Config” tab and “HO-ICOM/ENET local and ISIS network”, then “OK”.

7. Go “Operations”, then “Read Out Vehicle Data” and “Complete Identification”.

8. Select your BMW Diagnsotic Tool from the list and press “Set up connection”button.

How to use BMW Rheingold ISTA

ISTA is a workshop system that contains BMW AG Data and Information. ISTA stands for Integrated Service Technical Application. Way back when, during the initial development of this tool, BMW diagnostic software (Diagnostics Information System), and as the programs evolved and due to the nature of the file naming conventions utilized by BMW, the workshop system became known as Rheingold in the enthusiast world. Rheingold in actuality is the folder that contains the main application and data. Rheingold became ISTA-D (D stands for Diagnostics) and BMW’s programming application (not discussed in this document) used the same nomenclature, ISTA except with a P (for programming) or ISTA-P.
BMW Rheingold 4.06.31 ISTA Functions List:
1. Module (ECU) errors reading and clearing
2. Gearbox (transmission) and engine adaptations erasing
3. Fuel injectors control, correction amount real time viewing, injector registering
4. Engine mountings testing
5. Mass air flow (MAF) testing and registering. Whole air system testing
6. EGR system control and testing
7.Turbocharger and related components control and testing
8. Diesel particulate filter regeneration (DPF)
9. Battery replacement
10. Oil change and service interval reset
11. Wiring diagrams, live data, repair instructions, technical documents etc
12. Programming, vehicle retrofit, mirror coding, FSC codes adding or updating etc
….
And many more other functions
System Requirements:
Windows 7 (32-bit or 64-bit)
Windows 8 or 8.1 (32-bit or 64-bit)
Windows 10 (32-bit or 64-bit)
Minimum system configuration is now hard coded into the program, although the standalone
versions have this check removed.
2.2Ghz CPU – 2 core minimum, core i5 or i7 recommended
4GB RAM, 8GB recommended
Minimum 20+GB HDD free space for ISTA+ Diagnostics with ONE language, and minimum
100GB for Programming Data.
This version has hardware check removed, however, future versions MAY not have this
feature. A faster system is required.
This version discusses included English Databases only. If more required, add to SQLiteDBs folder, which will need more space.
Interfaces and other requirements
E-S ERIES :
Interface = K+DCAN Cable or ICOM A1/ICOM A2/ICOM Next
EDIABAS = Low Level ECU Communication Software Server used by ISTA+
F/G/I/M INI /RR-S ERIES :
Interface = ENET Cable or ICOM
ICOM:
ICOM A: main interface
ICOM B: adapter for programming multimedia in E series
ICOM C: adapter for old BMW with round 20 pin diagnostic plug
ICOM D: adapter for motorcycles
BMW Rheingold ISTA User Manual PDF Download:
User manual 1:
1 Introduction
Explanation of the symbols used
Important security instructions
Chapter contents
Integrated Service Technical Application (ISTA)
ISTA operating modes
Data exchange with other systems
Distinguishing different makes
General operation of the ISTA workshop system
2 Overview and short introduction
Starting the ISTA Client
Checking the operations list
Selecting a vehicle
Selecting a diagnostic connection to the vehicle
Creating an operation
Finding out about operation details
Perform vehicle test
Display fault memory
Editing a test plan
Running a procedure
Terminating an operation
3. Menu structure
Start mask
Identification
Vehicle test.
Activities
Service plan
Operation
4. Appendix
Scope of functions for operator devices
Abbreviations
Glossary
Fault messages and fault rectification
Index
BMW Rheingold ISTA User manual 1 download
User manual 2:
1. BMW Rheigold ISTA Introduction
2. System Requirements
3. Interfaces and other erqurements
4. How To Install BMW Diagnsotic Tool Rheingold ISTA Software
5. Programming note
6.Interface configuration and verification with ISTA+
7. Diagnostics with ISTA+

What is used for BMW G30 ECU flash

Purpose: Need to flash a BWM G series G30
Puzzle: Is the ICOM Next mandatory or is the up to date ICOM 1st generation ICOM from 2012 ok?
Can I flash NBT EVO with old ICOM?
Advice & Options:
1.
ENET cable would probably be better for you.
2.
I flashed NBT EVOs with old ICOM without problems.
3.
Flashed all Cars with ICOM Next and Online Aos with DHCP over Router. Since that i have Never any Problems with NBT or other. Flash E/F/G with this Setup.
Note that Online Aos is the online version of the BMW software for Diagnostic, Programming any many other things.
4.
To answer your question
1st : you doesn’t need iCOM NEXT ON CnAutotool to flash the G series…but It actually Lot better & save up your times because iCOM NEXT has build in Gigabit connection.
2nd : old iCOM working find. It just take a lot longer.
5.
Icom best any type , router I noticed w my setup I use desktop w 2 lan port and on a few f cars it actually faster then oem it programs up to 8 module same time w gigabit switch , and handle data lots faster than etnet cable and for certain modules the router is a must will crash hu high in kombi in a few others
6.
Any icom will work , but to be safe with f,g,i series vehicles , use a dedicated router as kafas huh and a few other modules will crash if you do not use a router it handles the switches for Ethernet as those modules use more than 1 path way , in short it uses all 4 two pair wires and without router not good , this has worked for me for some time now good luck. note my router does not connect to wan
Conclusion:
ICOM Next is the best option for G series, working better and faster than old BMW ICOM cables. It handles multiprogramming and coding quite nicely. Gets the job done much faster if flashing the complete vehicle. Also, another benefit to Next will be compatibility for future cars.

BMW ICOM Next is faster for BMW G series cars

Here, I’m perfectly aware what BMW ICOM NEXT A+B+C is and I have it.
Icom next runs a gigabyte lan port. So if router and laptop also running gigabyte ports you increase speed, that’s only if the car and software allow it.
Also the Icom next is faster for G series cars which I suspect also have gigabyte Ethernet bus.
Also it has USB3.0 instead of USB2.0 and a better wifi card.
Note that ICOM Next B is different from ICOM B. And ICOM Next A does not work with ICOM B on full speed.
For BMW G series:
Interface = ICOM
ISTA-D=Diagnostic software
ISTA-P = Coding Software
ISTA-P= Programming (Flashing) Software
BMW G series coding:
Unlike E/F series, all Diagnosis and Coding on G series cannot be done with a cheap ENET Cable or K+DCAN cable.
BMW ICOM is the only option for G series.
BMW G series programming:
For Programming (Flashing ECU’s with new Firmware), then you must have ISTA/P for G-Series cars
Note that for F-Series Programming, you will need an ENET Cable, but for E/G-Series Programming, you can use an ICOM emulator.

How to delete BMW car warning light using E-Sys

Sometimes when coding, warning lamps for various vehicles may be displayed. It usually happens when you touch the value of a feature that should not be touched. Some warning lights include a warning light that turns off and on after a short period of time, or disappears naturally over time. At this time, BMW diagnostic tool ENET cable E-Sys you can delete the warning light of these vehicles through. Of course, the one-off error caused by coding mistake is that the warning light does not come on again after deleting the warning light, but if there is a fault in the vehicle, the warning light will come back on again.
First run E-Sys (basically the same as coding, run E-Sys with E-Sys Launcher).
And connect to the vehicle.
When connection is established, right click on FA folder on Coding screen and Activate FA.
Then External Application > External Application select from the E-Sys left screen .
Transmitter Double-click on the right side .

When the Transmitter screen is displayed, Connect press the button at the bottom of the screen (if you press the Connect button, the connection will be displayed.
Predefined Services At the bottom of the list Clear all DTCs...., select the item that starts with.
Send Press the button at the bottom of the screen .
I did not capture the screen, but the results screen will display a message like this, and the warning light will be deleted immediately.
